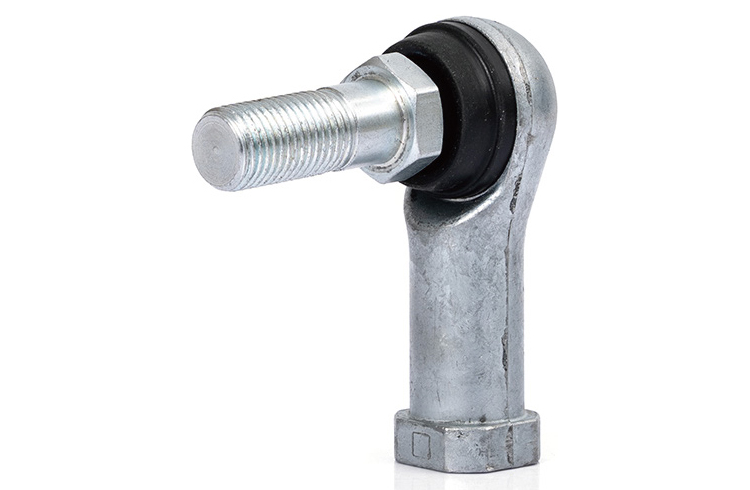

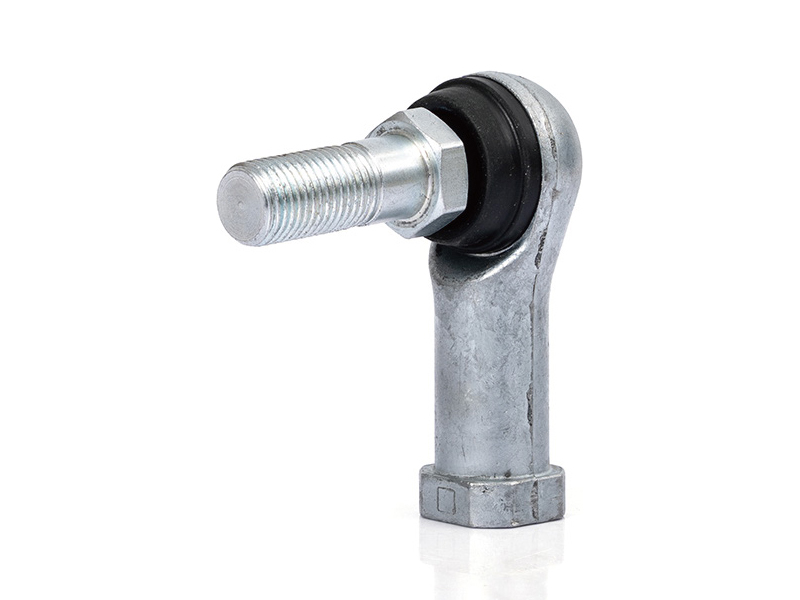

The BL-D Series Angled Ball Joint is designed with a compact angled structure, metric threaded connection, and rubber sealing protection to provide smooth movement, reliable positioning, and long service life. This Metric Ball Joint is engineered for applications requiring flexible angular movement and secure mechanical connections. The threaded design allows easy installation, while the rubber seal prevents dust, moisture, and contaminants from entering the internal joint structure.
The BL..D Series is an angular die-cast ball joint bearing. The ball housing is made of zinc-based alloy through precision die-casting, equipped with left-hand or right-hand double threads (threads at both ends) and built-in rubber seals. Specifically designed for angular double-thread connection, light-medium load scenarios in equipment, the angular double-thread structure enables direct angular butt joint of two equipment linkages without additional nuts or adapters, ensuring extremely high assembly efficiency. The ball operates flexibly, and the rubber seal protects against dust and moisture, serving as a convenient solution for angular double-end connections in general machinery and light industrial equipment.
Core Advantages of BL-D Series Angled Ball Joint
Reliable Ball Joint Linkage Performance
The BL-D series provides dependable connection and movement control for mechanical systems requiring flexible positioning.
As a professional Ball Joint Linkage component, it helps improve the efficiency and reliability of connected assemblies.
Suitable for Rod End Applications
The BL-D series can be used as a Rod End Ball Joint solution where compact design and angular movement capability are required.
Compared with standard connection components, the ball joint structure provides improved flexibility and smoother operation.
Durable Sealing Protection
The rubber seal extends product lifespan by protecting internal components from environmental contamination.
The sealed design is especially suitable for applications where maintenance access is limited.

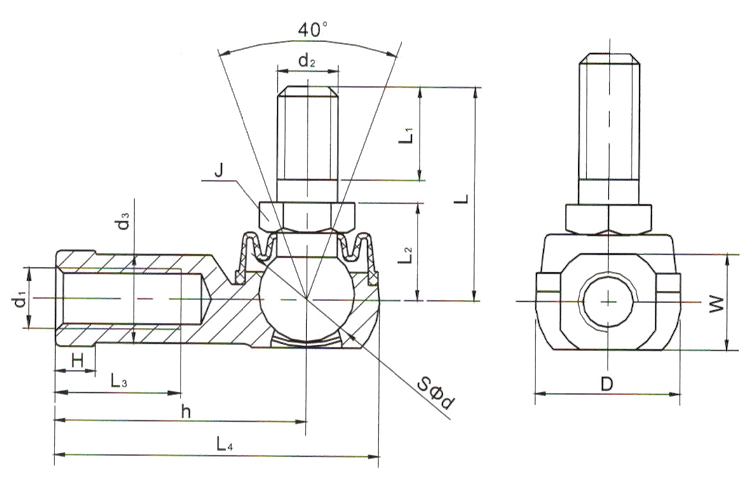

| Bearing number | Dimensions | kN Load Ratings | g Weight | |||||||||||||
| d₁ 6H | d₂ 6g | d₃ | L₁ min | L₂ | L | L₃ min | L₄ | h | H | W | D | J | SΦd | |||
| BL 6 D | M6×1.0 | M6×1.0 | 10 | 11 | 11 | 26 | 16 | 38 | 30 | 5 | 11 | 16 | 10 | 11.11 | 9.9 | 37 |
| BL 8 D | M8×1.25 | M8×1.25 | 13 | 12 | 14 | 31 | 19 | 45.5 | 36 | 6 | 14 | 19 | 12 | 12.7 | 12.5 | 66 |
| BL 10 DB | M10×1.5 | M10×1.5 | 14.5 | 21 | 17 | 43 | 23 | 55.5 | 43 | 7 | 17 | 25 | 14 | 15.88 | 18.3 | 110 |
| BL 10 D | M10×1.25 | M10×1.25 | 14.5 | 15 | 17 | 37 | 23 | 55.5 | 43 | 7 | 17 | 25 | 14 | 15.88 | 18.3 | 110 |
| BL 12 DB | M12×1.75 | M12×1.75 | 17.5 | 24 | 19 | 49 | 26 | 64.5 | 50 | 8 | 19 | 29 | 17 | 19.05 | 26.7 | 160 |
| BL 12 D | M12×1.25 | M12×1.25 | 17.5 | 17 | 19 | 42 | 26 | 64.5 | 50 | 8 | 19 | 29 | 17 | 19.05 | 26.7 | 160 |
| BL 16 DB | M16×2.0 | M16×2.0 | 22 | 29 | 23.5 | 66 | 34 | 83 | 64 | 11 | 24 | 38 | 22 | 22.23 | 36.4 | 330 |
| BL 16 D | M16×1.5 | M16×1.5 | 22 | 23 | 23.5 | 60 | 34 | 83 | 64 | 11 | 24 | 38 | 22 | 22.23 | 36.4 | 330 |
Tips:
If the thread is left-hand (LH), the letter "L" must be appended to the bearing designation, e.g., BL 8 DL..
Equipped with rubber seals
