SA..E(S) Series Male Rod End Bearing - Metric, Oil-Lubricated

The rod end body is equipped with left-hand (LH) or right-hand (RH) internal threads. Consists of a rod end body and a radial spherical plain bearing GE..E(S) or GE..ES 2RS. Rod end body surface is zinc-plated; SA..ES types male rod end bearings are equipped with a lubrication hole or grease nipple.

Request your customized solution

Download

SA..E(S) Series Rod End Bearing Description

The SA..E (S)/SA..ES 2RS Series is a maintenance-required rod end bearing with external threads, specifically designed for high-load, regularly maintainable external linkage scenarios in equipment. It is equipped with left-hand or right-hand external threads and consists of a rod end body and a radial spherical plain bearing (GE..E (S)/GE..ES 2RS). The rod end body is made of medium carbon steel with environmentally friendly zinc plating. It adopts a steel/steel sliding pair; both the ball and outer ring are heat-treated bearing steel (HRC 54-60) with phosphating treatment. ES models are equipped with lubrication holes/grease nipples, and for specifications with d≥15, the optional 2RS double-seal structure effectively blocks dust and moisture from the external environment. The external threads allow direct and secure fastening with internal threaded holes on equipment frames. With its robust structure and strong load-bearing capacity, it is the preferred connector for high-load external linkages in heavy equipment.

Core Advantages

1. Steel/steel sliding pair for heavy load adaptation

2. Maintainable design suitable for outdoor regular maintenance

3. 2RS double-seal for upgraded outdoor protection

4. High-strength external thread fastening

5. Dual rust protection (phosphating + zinc plating)

Sliding Contact Pair:	Steel/Steel
Rod End Body Material:	Medium Carbon Steel, Environmental Zinc Plated
Outer Ring Material:	Bearing Steel, Heat Treatment Hardness HRC 54-60, Phosphating
Ball:	Bearing Steel, Heat Treatment Hardness HRC 54-60, Phosphating

Technical Specifications

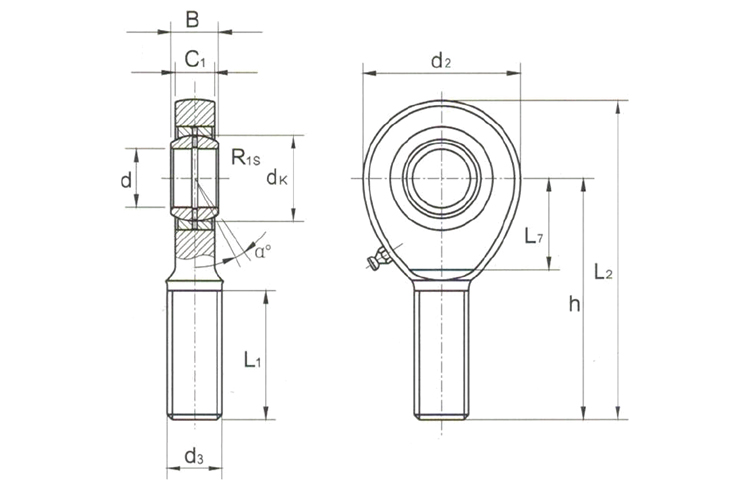

Bearing number	Dimensions												kN Load Ratings		g Weight
Bearing number	d	d₃ 6H	B	C₁	L₁ min	d₂	L₇ min	h	L₂	dₖ	R₁s	α° ≈	Dynamic	Static	g Weight
SA 6 E*	6	M6×1.0	6	4.4	18	21	11	36	46.5	10	0.3	13	3.40	8.15	17
SA 8 E*	8	M8×1.25	8	6	22	24	14	42	54	13	0.3	15	5.50	12.9	29
SA 10 E*	10	M10×1.5	9	7	26	29	15	48	62.5	16	0.3	12	8.15	17.6	51
SA 12 E*	12	M12×1.75	10	8	28	34	17	54	71	18	0.3	11	10.8	24.5	86
SA 15 ES	15	M14×2.0	12	10	34	40	20	63	83	22	0.3	8	17.0	36.0	140
SA 17 ES	17	M16×2.0	14	11	36	46	23	69	92	25	0.3	10	21.2	45.0	190
SA 20 ES	20	M20×1.5	16	13	43	53	27	78	104.5	29	0.6	9	30.0	60.0	310
SA 25 ES	25	M24×2.0	20	17	53	64	32	94	126	35.5	0.6	7	48.0	83.0	560
SA 30ES	30	M30×2.0	22	19	65	73	37	110	146.5	40.7	0.6	6	62.0	110	890
SA 35 ES	35	M36×3.0	25	21	82	82	41	140	181	47	0.6	6	80.0	146	1400
SA 40 ES	40	M39×3.0	28	23	86	92	46	150	196	53	0.6	7	100	180	1800
SA 45 ES	45	M42×3.0	32	27	94	102	51	163	214	60	0.6	7	127	240	2600
SA 50 ES	50	M45×3.0	35	30	107	112	56	185	241	66	0.6	6	156	290	3400
SA 60 ES	60	M52×3.0	44	38	115	135	68	210	277.5	80	1.0	6	245	450	5900
SA 70 ES	70	M56×4.0	49	42	125	160	80	235	315	92	1.0	6	315	610	8200
SA 80 ES	80	M64×4.0	55	47	140	180	90	270	360	105	1.0	6	400	750	12000

Tips:
If the thread is left-hand (LH), the letter "L" must be appended to the bearing designation, e.g., SA 20 ES 2RS.
For bearing bore diameter d ≥ 15, the -2RS sealed variant is also available, e.g., SI 20 ES 2RS.
Models marked with an asterisk (*) do not include a lubrication hole or grease nipple.
