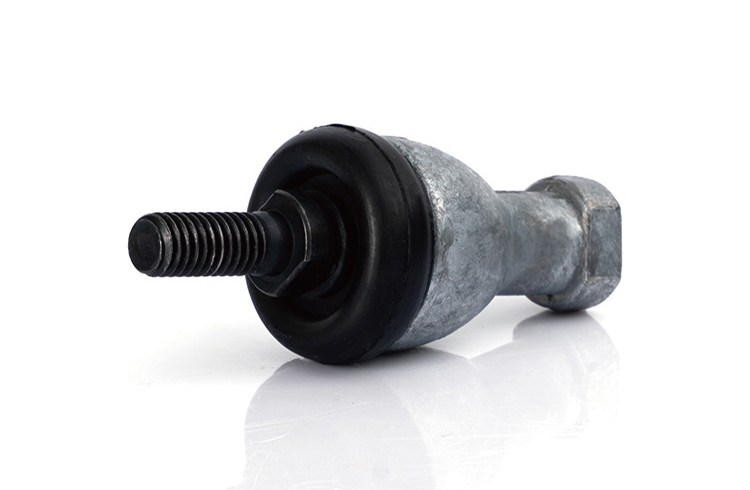

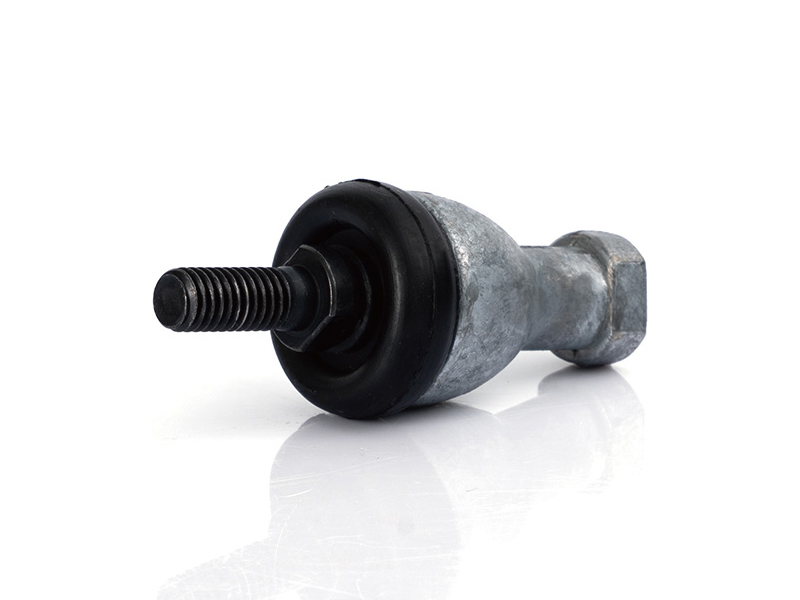

SQZ..RS Series Straight Ball Joint with Rubber Seal - Metric

The SQZ..RS Series is a straight ball joint bearing. The ball housing is made of zinc-based alloy through die-casting, equipped with left-hand or right-hand threads and built-in rubber seals to effectively prevent dust and moisture ingress. The ball and housing feature high fit precision, enabling flexible multi-angle swinging. Specifically designed for straight linkage, light-medium load connection scenarios in equipment, it has a simple structure, easy assembly, and moderate cost. Compatible with a wide range of metric threads, it is a basic connector for straight linkages in general machinery and light industrial equipment.

Request your customized solution

Download

SQZ..RS Series Straight Ball Joint Description

Gonuo SQZ RS Series Ball Joint is a high-quality Straight Ball Joint designed for flexible mechanical connection and precise motion control applications. As a professional China Ball Joint Manufacturer, Gonuo provides reliable metric ball joint solutions with stable performance, competitive pricing and customized manufacturing capabilities.

The SQZ RS Series is a type of Metric Ball Joint featuring a zinc alloy housing, precision-machined ball stud and integrated rubber dust protection. This design allows smooth angular movement while reducing contamination from dust, moisture and external particles.

With multiple metric thread options including SQZ5RS Ball Joint, SQZ6RS Ball Joint, SQZ8RS Ball Joint and SQZ10RS Ball Joint, this series is widely used in industrial automation equipment, mechanical linkage systems, pneumatic cylinders, agricultural machinery and other motion control applications.

Core Advantages

1. Zinc-based alloy die-cast housing for high strength and lightweight

2. Rubber seal for basic protection

3. Multi-angle swinging for complex linkage adaptation

4. Direct thread connection for easy assembly

5. Full coverage of specifications with cost-effectiveness

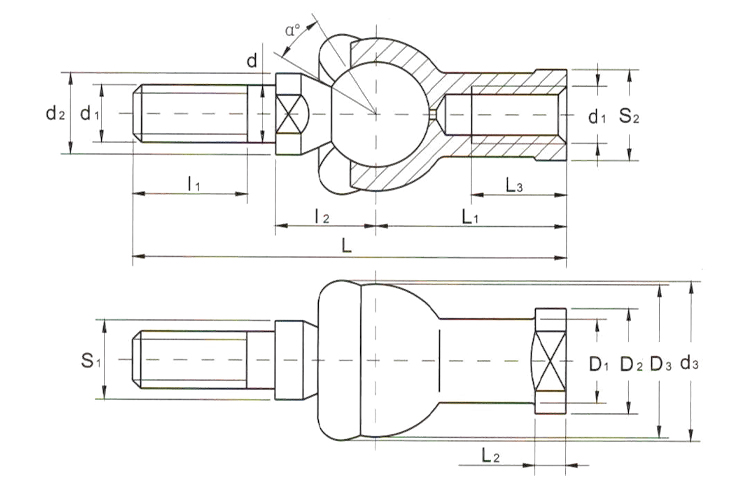

Technical Specifications

Bearing number	Dimensions																kN Load Ratings	g Weight
Bearing number	d	d₁	d₂	d₃	l₁	l₂	S₁	L	L₁	L₂	L₃	D₁	D₂	D₃	S₂	α°	kN Load Ratings	g Weight
SQZ 5RS	5	M5×0.8	9	20	8	11	7	46	24	4	12	9	11	17	9	15	2.8	25
SQZ 6RS	6	M6×1.0	10	20	11	12.2	8	55.2	28	5	15	10	13	20	11	15	3.7	41
SQZ 8RS	8	M8×1.25	12	24	12	16	10	65	32	5	16	12.5	16	24	14	15	5.8	75
SQZ 10RS	10	M10×1.25	14	30	15	19.5	11	74.5	35	6.5	18	15	19	28	17	15	8.4	120
SQZ 10RS-1	10	M10×1.5	14	30	21	19.5	11	80.5	35	6.5	18	15	19	28	17	15	8.4	120
SQZ 12RS	12	M12×1.25	17	32	17	21	15	84	40	6.5	20	17.5	22	32	19	15	11	180
SQZ 12RS-1	12	M12×1.75	17	32	24	21	15	91	40	6.5	20	17.5	22	32	19	15	11	180
SQZ 14RS	14	M14×1.5	19	38	22	23.5	17	103	45	8	25	20	25	36	22	11	15	270
SQZ 14RS-1	14	M14×2.0	19	38	28	23.5	17	109	45	8	25	20	25	36	22	11	15	270
SQZ 16RS	16	M16×1.5	22	44	23	25.5	19	112	50	8	27	22	27	40	22	11	15	360
SQZ 16RS-1	16	M16×2.0	22	44	29	25.5	19	118	50	8	27	22	27	40	22	11	15	360
SQZ 18RS	18	M18×1.5	23	45	25	31	20	130.5	58	10	32	25	31	45	27	11	19	540
SQZ 20RS	20	M20×1.5	27	50	25	29	24	133	63	10	38	27.5	34	45	30	7.5	19	570
SQZ 22RS	22	M22×1.5	27	52	26	33	24	145	70	12	43	30	37	50	32	7.5	23	750

Tips:
If the spherical head housing has a left-hand thread, the bearing designation must include the letter "L", e.g., SQZL 6RS.
For products without a seal cover, the model designation is SQZ...

Applications

The SQZ RS Series is widely used as an Industrial Linkage Ball Joint in various industries.

Industrial Automation: SQZ RS Series Ball Joint used for linkage systems in packaging machinery, printing equipment, textile machines, and automated production lines.

Construction Machinery: Straight Ball Joint applied in control linkages for excavators, loaders, compactors, and other heavy-duty equipment.

Material Handling: Metric Ball Joint solutions for pivot points in conveyors, lifting platforms, automated guided vehicles, and mechanical handling equipment.

Off-Highway Vehicles: Rubber Sealed Ball Joint used in steering systems, throttle linkages, and adjustment mechanisms for tractors and agricultural implements.

Hydraulic & Pneumatic Cylinders: Rubber Dust Seal Ball Joint provides secure connection points for cylinders, actuators, and motion control systems requiring reliable linkage performance.
