POSB Series Male Rod End Bearing - Metric, Oil-Lubricated

thumb POSB Series Male Rod End Bearing - Metric, Oil-Lubricated

POSB Series Male Rod End Bearing -Threaded, Oil-Lubricated

The rod end body is equipped with left-hand (LH) or right-hand (RH) internal threads. The rod end body is zinc-plated and equipped with a lubrication hole or grease nipple.

Request your customized solution

Download

POSB Rod End Bearing Description

The POSB Series (external thread) is a maintenance-required rod end bearing with a bronze bushing and imperial specifications. Specifically designed to adapt to overseas imperial equipment and export machinery, it is equipped with left-hand or right-hand imperial threads. The rod end body is made of medium carbon steel with environmentally friendly zinc plating, and the outer ring is inlaid with a bronze bushing. It adopts a steel/bronze sliding pair; the ball is made of heat-treated bearing steel (hardness HRC 58-62) with hard chrome plating. The entire series is equipped with lubrication holes/grease nipples. Strictly adhering to imperial size standards, the product features precise thread accuracy and mounting dimensions that perfectly match overseas imperial equipment. The self-lubricating and dry friction-resistant bronze bushing makes it suitable for medium-high load, regularly maintainable external linkage scenarios in imperial equipment, serving as a preferred accessory for export machinery and overseas equipment maintenance.

Core Advantages

1. Pure imperial specifications for seamless adaptation to overseas equipment

2. Bronze bushing for self-lubrication and dry friction resistance

3. External thread design for external equipment installation

4. Multiple rust protections for diverse overseas environments

Sliding Contact Pair:	Steel/Bronze
Rod End Body Material:	Medium Carbon Steel, Environmental Zinc Plated
Outer Ring Material:	Outer race lined with bronze liner.
Ball:	Bearing Steel, Heat Treatment, Hardness HRC 58-62, Hard Chromium Plated

Technical Specifications

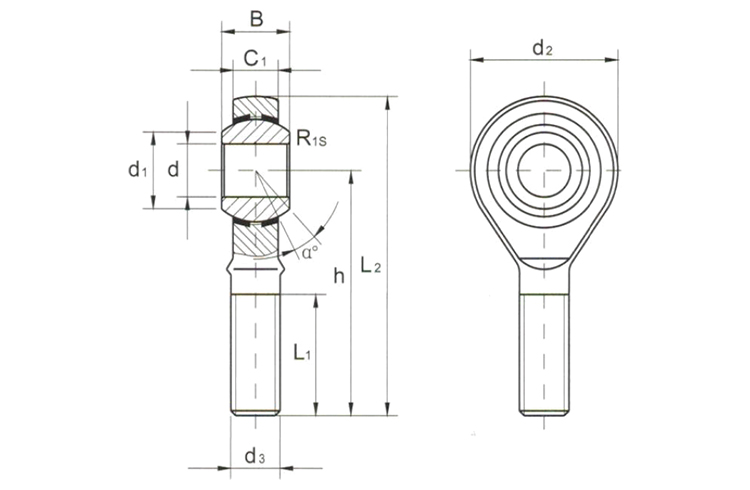

Bearing number	Dimensions											kN Load Ratings		g Weight
Bearing number	d	d₃ 3A	B	C₁	d₁	R₁s	d₂	h	L₁	L₂	α	Dynamic	Static	g Weight
POSB 3	4.826	10-32	7.925	6.35	7.80	0.3	15.88	31.75	19.05	39.70	10	3.4	3.8	13
POSB 4	6.350	¼-28	9.525	7.14	8.40	0.3	19.05	39.67	25.40	49.20	13	4.5	6.6	22
POSB 5	7.938	⁵/₁₆-24	11.10	8.74	11.4	0.3	22.23	47.63	31.75	58.72	10	6.9	8.4	37
POSB 6	9.525	⅜-24	12.70	10.31	13.1	0.6	25.40	49.23	31.75	61.93	9	9.4	10	55
POSB 7	11.113	⁷/₁₆-20	14.275	11.10	14.9	0.6	28.58	53.98	34.95	68.28	11	11	13	78
POSB 8	12.70	½-20	15.875	12.70	17.7	0.6	33.32	61.93	38.10	78.59	9	15	19	120
POSB 10	15.875	⅝-18	19.05	14.27	21.3	0.6	38.10	66.68	41.28	85.73	11	20	21	180
POSB 12	19.05	¾-16	22.225	17.45	24.8	0.6	44.45	73.03	44.45	95.25	10	29	29	290
POSB 16	25.40	⁵/₄-12	34.93	25.40	32.2	0.6	69.85	104.78	53.98	139.7	14	60	101	1100

Tips:
For bearings with a left-hand thread, the model code must incorporate the suffix "L" and the designator "Left". Example: POSB6L M3/8X24g Left-Hand (LH).
Outer race lined with bronze liner.

Applications

Industrial Automation: Linkages in packaging machinery, printing presses, and textile equipment.

Construction Machinery: Control linkages for excavators, loaders, and compactors.

Material Handling: Pivot points for conveyors, lifts, and automated guided vehicles.

Off-Highway Vehicles: Steering and throttle linkages for tractors and agricultural implements.

Hydraulic & Pneumatic Cylinders: End mounts for cylinders requiring a secure male thread connection.
