Gonuo JF-T series female rod end bearing is a high-performance inch rod end bearing designed for industrial equipment, mechanical linkages and applications requiring low maintenance operation. Featuring right-hand or left-hand female threads and a self-lubricating spherical plain bearing, it provides smooth movement, reduced friction and reliable service life.
The JF-T inch rod end bearing adopts a durable steel/PTFE composite sliding structure with a zinc-plated rod body, offering excellent wear resistance and corrosion protection. This self lubricating rod end bearing delivers stable performance without frequent lubrication, making it suitable for demanding working environments.
The JF..T Series is a maintenance-free rod end bearing with internal threads (inch dimensions), specifically designed for inch-standard equipment and export machinery. It consists of a rod end body and a self-lubricating radial spherical plain bearing. The rod end body is made of medium carbon steel with environmentally friendly zinc plating. It adopts a steel/PTFE composite sliding pair: the outer ring is carbon steel, and the ball is made of heat-treated bearing steel (hardness HRC 58-62) with hard chrome plating. The female spherical rod end bearing strictly adheres to inch size standards, with precise thread accuracy and mounting dimensions that perfectly match overseas inch-standard equipment. It is suitable for medium-load, regularly maintainable internal linkage scenarios, serving as a reliable connector for general machinery and export equipment.
Core Advantages
1. Maintenance-Free Self-Lubricating Performance
The maintenance free rod end bearing adopts a PTFE composite sliding structure, reducing friction and minimizing maintenance requirements during long-term operation.
2. Smooth Movement & Excellent Wear Resistance
The self lubricating rod end bearing ensures stable angular movement, low friction performance and reliable durability under continuous working conditions.
3. Precision Inch Female Thread Design
The JF-T inch rod end bearing follows inch size standards and features accurate internal threads, ensuring easy installation and compatibility with international equipment.
4. Reliable Spherical Motion Control
The female spherical rod end bearing allows angular misalignment compensation while maintaining stable force transmission in complex linkage systems.
5. Professional Manufacturing & Customization
As an experienced JF-T rod end bearing manufacturer, Gonuo supports customized dimensions, thread specifications, materials and surface treatments to meet different application requirements.
Sliding Contact Pair: | Steel/PTFE Composite |
Rod End Body Material: | Medium Carbon Steel, Environmental Zinc Plated |
Outer Ring Material: | Carbon Steel |
Ball: | Bearing Steel, Heat Treatment, Hardness HRC 58-62, Hard Chromium Plated |

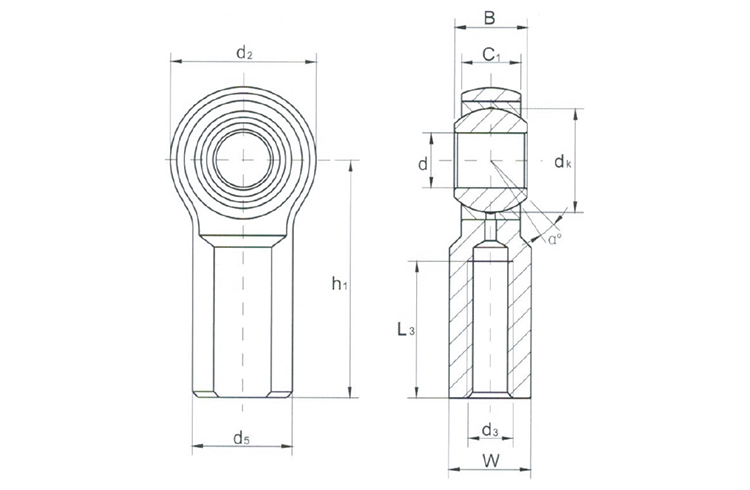

| Bearing number | Dimensions | kN Load Ratings | g Weight | ||||||||||
| d | B | C₁ | h₁ | d₂ | d₅ | W | dₖ | L₃ min | d₃ 2B | α° ≈ | |||
| JF2T | 3.175 | 6.35 | 4.75 | 20.62 | 12.70 | 7.92 | 6.35 | 7.92 | 11.10 | 6-32 | 8 | 5.344 | 9 |
| JF3T | 4.826 | 7.92 | 6.35 | 26.97 | 15.88 | 10.31 | 7.92 | 11.10 | 14.27 | 10-32 | 6.5 | 6.805 | 17 |
| JF4T | 6.350 | 9.53 | 7.14 | 33.32 | 19.05 | 11.91 | 9.53 | 12.70 | 19.05 | ¼-28 | 8 | 11.297 | 27 |
| JF5T | 7.938 | 11.10 | 8.74 | 34.93 | 22.23 | 12.70 | 11.10 | 15.88 | 19.05 | ⁵/₁₆-24 | 7 | 13.934 | 42 |
| JF6T | 9.525 | 12.70 | 10.31 | 41.28 | 25.40 | 17.45 | 14.27 | 18.26 | 23.80 | ⅜-24 | 6 | 17.416 | 69 |
| JF7T | 11.113 | 14.27 | 11.10 | 46.02 | 28.58 | 19.05 | 15.88 | 20.62 | 26.97 | ⁷/₁₆-20 | 7 | 18.759 | 90 |
| JF8T | 12.70 | 15.88 | 12.70 | 53.98 | 33.32 | 22.23 | 19.05 | 23.80 | 30.15 | ½-20 | 6 | 29.624 | 149 |
| JF10T | 15.875 | 19.05 | 14.27 | 63.50 | 38.10 | 25.40 | 22.23 | 28.58 | 38.10 | ⅝-18 | 8 | 32.752 | 216 |
| JF12T | 19.05 | 22.23 | 17.45 | 73.03 | 44.45 | 28.58 | 25.40 | 33.32 | 44.45 | ¾-16 | 7 | 51.237 | 328 |
| JF14T | 22.225 | 22.23 | 19.43 | 85.73 | 50.80 | 33.02 | 28.58 | 34.93 | 47.63 | ⅞-14 | 3.5 | 82.185 | 467 |
| JF16T | 25.40 | 34.93 | 25.40 | 104.78 | 69.85 | 41.28 | 38.10 | 47.63 | 53.98 | 1¼-12 | 8.5 | 193.670 | 964 |
Tips:
For left-hand thread, please add suffix "L", e.g.JFL 10T
In inch dimension series.
Industrial Automation: The JF-T series female rod end bearing is widely used in packaging machinery, printing equipment and automated production systems requiring precise linkage control.
Construction Machinery: The durable structure of the female spherical rod end bearing supports linkage systems in excavators, loaders and compact equipment.
Material Handling: The JF-T inch rod end bearing is suitable for conveyors, lifting equipment and automated handling systems requiring dependable pivot connections.
Off-Highway Vehicles: Steering and throttle linkages for tractors and agricultural implements.
Hydraulic & Pneumatic Cylinders: The inch rod end bearing provides reliable cylinder end connections where smooth movement, accurate positioning and reduced maintenance are required.
When you choose Gonuo, you work with an experienced JF-T rod end bearing manufacturer providing reliable self lubricating rod end bearing solutions with consistent quality, technical support and stable supply for global industrial applications.
Gonuo manages the complete production process from material selection, precision machining to final inspection. This integrated manufacturing system ensures consistent quality and reliable performance for every JF-T series female rod end bearing order.
Different equipment requires different specifications. We provide customized JF-T inch rod end bearing solutions, including thread sizes, dimensions, materials and surface treatments. Our engineering team supports OEM requirements for various industrial linkage applications.
Each female spherical rod end bearing undergoes strict quality inspection to ensure dimensional accuracy, smooth operation and long service life. Material traceability and inspection reports are available to support global customer quality requirements.
Leveraging our mature supply chain and large-scale production, we offer stable supply, competitive pricing, and flexible MOQs (bulk or small batches). Our fast replenishment system aligns with your production schedule, helping you reduce procurement costs without compromising quality.
With efficient production capacity and mature supply chain management, Gonuo provides stable delivery, competitive solutions and flexible order support for distributors, OEM customers and industrial equipment manufacturers worldwide.
