PHSB Series Female Rod End Bearing - Metric, Oil-Lubricated

thumb PHSB Series Female Rod End Bearing - Metric, Oil-Lubricated

PHSB Series Female Rod End Bearing - Threaded, Oil-Lubricated

The rod end body is equipped with left-hand (LH) or right-hand (RH) internal threads. The rod end body is zinc-plated and equipped with a lubrication hole or grease nipple.

Request your customized solution

Download

PHSB Rod End Bearing Description

The PHSB Series (internal thread) is a maintenance-required rod end bearing with a bronze bushing and imperial specifications. Specifically designed to adapt to overseas imperial equipment and export machinery, it is equipped with left-hand or right-hand imperial threads. The rod end body is made of medium carbon steel with environmentally friendly zinc plating, and the outer ring is inlaid with a bronze bushing. It adopts a steel/bronze sliding pair; the ball is made of heat-treated bearing steel (hardness HRC 58-62) with hard chrome plating. The entire series is equipped with lubrication holes/grease nipples. Strictly adhering to imperial size standards, the product features precise thread accuracy and mounting dimensions that perfectly match overseas imperial equipment. The self-lubricating and dry friction-resistant bronze bushing makes it suitable for medium-high load, regularly maintainable internal linkage scenarios in imperial equipment, serving as a preferred accessory for export machinery and overseas equipment maintenance.

Core Advantages

1. Pure imperial specifications for seamless adaptation to overseas equipment

2. Bronze bushing for self-lubrication and dry friction resistance

3. Internal thread design for internal equipment installation

4. Multiple rust protections for diverse overseas environments

Sliding Contact Pair:	Steel/Bronze
Rod End Body Material:	Medium Carbon Steel, Environmental Zinc Plated
Outer Ring Material:	Outer race lined with bronze liner
Ball:	Bearing Steel, Heat Treatment, Hardness HRC 58-62, Hard Chromium Plated

Technical Specifications

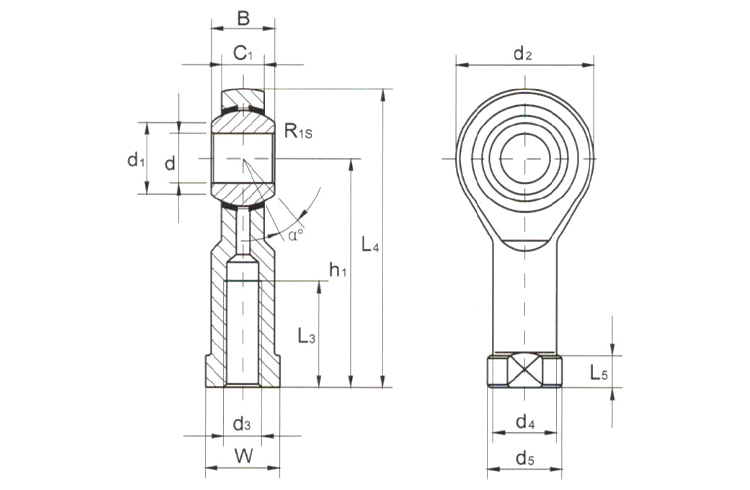

Bearing number	Dimensions															kN Load Ratings		g Weight
Bearing number	d	d₃ 2B	B	C₁	d₁	R₁S	d₂	h₁	L₃ min	L₄	L₅	d₄	d₅	W	α ≈	Dynamic	Static	g Weight
PHSB 3	4.826	10-32	7.92	6.35	7.80	0.3	15.88	26.97	14.27	34.91	4.75	7.54	10.31	7.92	10	3.4	4.6	15
PHSB 4	6.350	¼-28	9.53	7.14	8.40	0.3	19.05	33.32	19.05	42.85	4.75	9.15	11.91	9.53	13	4.5	7.7	25
PHSB 5	7.938	⁵/₁₆-24	11.10	8.74	11.4	0.3	22.23	34.93	19.05	46.04	4.75	10.72	12.70	11.1	10	6.9	8.4	36
PHSB 6	9.525	⅜-24	12.70	10.31	13.1	0.3	25.40	41.28	23.80	53.98	6.35	13.89	17.45	14.27	9	9.4	10	61
PHSB 7	11.113	⁷/₁₆-20	14.27	11.10	14.9	0.6	28.58	46.02	26.97	60.31	6.35	15.49	19.05	15.88	11	11	13	81
PHSB 8	12.70	½-20	15.88	12.70	17.7	0.6	33.32	53.98	30.15	70.64	6.35	18.67	22.23	19.05	9	15	19	133
PHSB 10	15.875	⅝-18	19.05	14.27	21.3	0.6	38.10	63.50	38.10	82.55	7.92	21.84	25.40	22.23	11	20	21	190
PHSB 12	19.05	¾-16	22.23	17.45	24.8	0.6	44.45	73.03	44.45	95.25	7.92	25.02	28.58	25.40	10	29	29	285
PHSB 16	25.40	⁵/₄-12	34.93	25.40	32.2	0.6	69.85	104.78	53.98	139.7	11.1	37.72	44.45	38.10	14	60	101	1000

Tips:
For bearings with a left-hand thread, the model code must incorporate the suffix "L" and the designator "Left". Example: PHSB6L M3/8X24g Left-Hand (LH).
Outer race lined with bronze liner.

Applications

Industrial Automation: Linkages in packaging machinery, printing presses, and textile equipment.

Construction Machinery: Control linkages for excavators, loaders, and compactors.

Material Handling: Pivot points for conveyors, lifts, and automated guided vehicles.

Off-Highway Vehicles: Steering and throttle linkages for tractors and agricultural implements.

Hydraulic & Pneumatic Cylinders: End mounts for cylinders requiring a secure male thread connection.
