SA..C Series Male Rod End Bearing - Self-Lubricating, Metric

SA..C Series Male Rod End Bearing is a high-precision metric rod end bearing with external thread structure, integrating premium spherical plain bearing rod end and self-lubricating rod end technology. Designed with optional 2RS sealing, it is widely used as a reliable hydraulic cylinder rod end and ideal male thread rod end bearing for precision machinery and automation equipment.

Request your customized solution

Download

SA..C Series Male Rod End Bearing Description

The SA..C Series Male Rod End Bearing (SA..C / SA..ET 2RS) is a heavy‑duty metric rod end bearing with external threads, available in left-hand (LH) or right-hand (RH) configurations. This professional male thread rod end bearing adopts a high-performance self-lubricating rod end structure with PTFE composite sliding pair, paired with a built-in spherical plain bearing rod end for stable angular movement and high load capacity.

For sizes with bore diameter d ≥ 35, this series is equipped with 2RS sealed rod end design to effectively block dust, moisture and impurities, ensuring stable operation in harsh working environments. The SA..C Series Male Rod End Bearing features high-strength bearing steel ball (HRC 58‑62), hard chrome plating, and environmentally friendly zinc-plated rod end body, delivering excellent wear resistance and corrosion protection.

As a reliable hydraulic cylinder rod end and key linkage component, this metric rod end bearing provides maintenance-free performance, smooth transmission and high precision, perfectly meeting the requirements of automated production lines, precision instruments, construction machinery and hydraulic systems.

Core Advantages

1. Premium 2RS sealed rod end design for superior dustproof and waterproof performance

2. High-precision grinding ensures stable operation of the self-lubricating rod end

3. Built-in spherical plain bearing rod end for reliable load capacity and long service life

4. Standard metric rod end bearing with flexible left/right male thread rod end bearing options

5. Ideal hydraulic cylinder rod end solution for heavy-duty and precision linkage applications

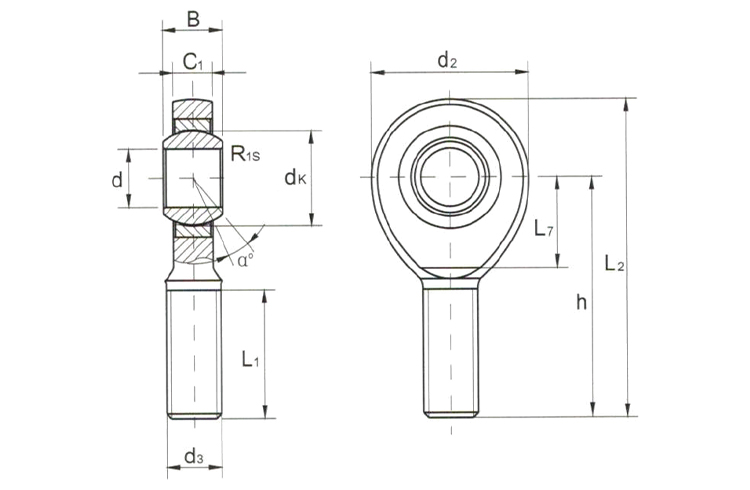

SA..C Series Male Rod End Bearing | Self-Lubricating Metric Rod Ends | Gonuo

Sliding Contact Pair:	Steel/PTFE Composite
Rod End Body Material:	Medium Carbon Steel, Environmental Zinc Plated
Outer Ring Material:	Carbon Steel
Ball:	Bearing Steel, Heat Treatment, Hardness HRC 58-62, Hard Chromium Plated

Technical Specifications

Bearing number	Dimensions												kN Load Ratings		g Weight
Bearing number	d	d₃	B	C₁	d₂	L₂ min	h	L₇	L₁ min	dₖ	R₁s	α° ≈	Dynamic	Static	g Weight
SA 6 C	6	M6×1.0	6	4.4	21	46.5	36	12	18	10	0.3	13	3.60	8.15	17
SA 8 C	8	M8×1.25	8	6	24	54	42	14	22	13	0.3	15	5.85	12.9	29
SA 10 C	10	M10×1.5	9	7	29	62.5	48	15	26	16	0.3	12	8.65	17.6	51
SA 12 C	12	M12×1.75	10	8	34	71	54	18	28	18	0.3	11	11.4	24.5	86
SA 15 C	15	M14×2.0	12	10	40	83	63	20	34	22	0.3	8	17.6	36.0	140
SA 17 C	17	M16×2.0	14	11	46	92	69	23	36	25	0.3	10	22.4	45.0	190
SA 20 C	20	M20×1.5	16	13	53	104.5	78	27	43	29	0.6	9	31.5	60.0	310
SA 25 C	25	M24×2.0	20	17	64	126	94	32	53	35.5	0.6	7	51.0	83.0	560
SA 30 C	30	M30×2.0	22	19	73	146.5	110	37	65	40.7	0.6	6	66.5	110	890
SA 35 ET 2RS	35	M36×3.0	25	21	82	180	140	42	82	47	0.6	6	112	146	1400
SA 40 ET 2RS	40	M39×3.0	28	23	92	196	150	48	86	53	0.6	7	140	180	1800
SA 45 ET 2RS	45	M42×3.0	32	27	102	214	163	52	94	60	0.6	7	180	240	2600
SA 50 ET 2RS	50	M45×3.0	35	30	112	241	185	60	107	66	0.6	6	220	290	3400
SA 60 ET 2RS	60	M52×3.0	44	38	135	277.5	210	75	115	80	1.0	6	345	450	5900
SA 70 ET 2RS	70	M56×4.0	49	42	160	315	235	87	125	92	1.0	6	440	610	8200
SA 80 ET 2RS	80	M64×4.0	55	47	180	360	270	100	140	105	1.0	6	570	750	12000

Tips:
If the thread is left-hand (LH), the letter "L" must be appended to the bearing designation, e.g., SAL6 C.
For bearing bore diameter d ≥ 35, the ET 2RS (sealed) design is required.

Applications

Industrial Automation: Linkages in packaging machinery, printing presses, and textile equipment.

Construction Machinery: Control linkages for excavators, loaders, and compactors.

Material Handling: Pivot points for conveyors, lifts, and automated guided vehicles.

Off-Highway Vehicles: Steering and throttle linkages for tractors and agricultural implements.

Hydraulic & Pneumatic Cylinders: End mounts for cylinders requiring a secure male thread connection.
