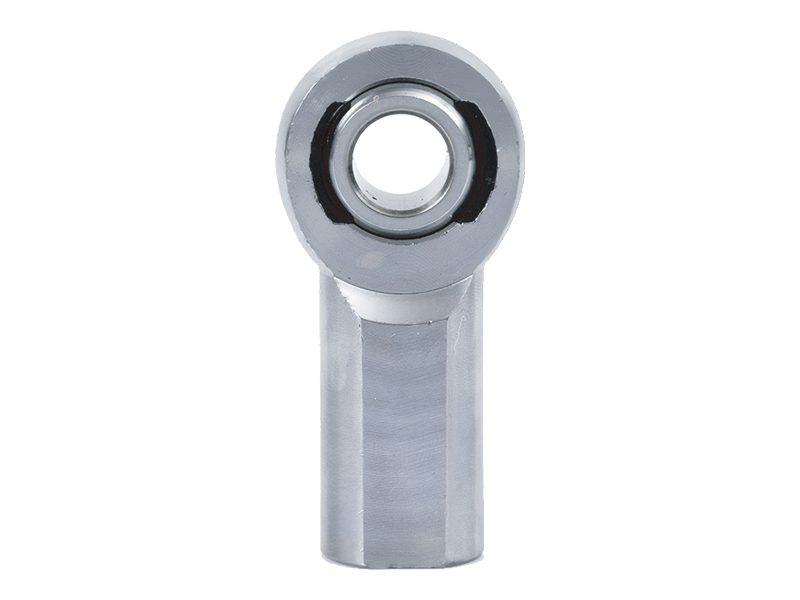

KFX Series Rod End Bearing-Self-Lubricating, Metric

The rod end body is equipped with left-hand (LH) or right-hand (RH) internal threads. The steel ball is encased in an injection-molded nylon liner and press-fitted into the rod end body. Suitable for high load, high-frequency oscillation, and impact applications.

Request your customized solution

Download

KFX Series Rod End Bearing Description

The KFX Series is a maintenance-free rod end bearing with internal threads (left-hand/right-hand available). It features an injection-molded nylon liner pressed into the rod end body, eliminating the need for regular grease injection. The rod end body is made of alloy steel with chrome plating for a polished finish and high strength. The ball is constructed from heat-treated bearing steel (hardness HRC 58-62) with hard chrome plating. Strictly adhering to inch dimension standards, it ensures precise thread accuracy and seamless assembly with overseas inch-equipment. Ideal for high-load, high-frequency oscillation and impact applications, it delivers reliable performance and long service life for heavy-duty automation and construction machinery.

Core Advantages

1. Maintenance-free design (nylon liner for continuous lubrication)

2. High-strength alloy steel body with chrome plating

3. Heat-treated bearing steel ball for extreme load resistance

4. Precision internal thread fit for easy installation

5. Inch dimension series for perfect overseas compatibility

Sliding Contact Pair:	Steel / Injection-Molded Nylon Liner
Rod End Body Material:	Alloy steel; Chrome plated and polished; Tensile strength ≥ 1200 MPa
Ball:	Bearing Steel, Heat Treatment, Hardness HRC 58-62, Hard Chromium Plated

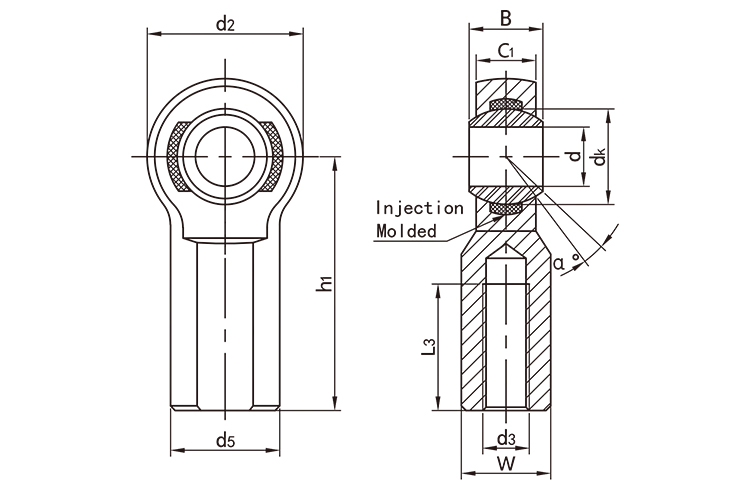

Technical Specifications

Bearing number	Dimensions										kN Load Ratings	g Weight
Bearing number	d	B	C₁	h₁	d₂	d₅	W	dₖ	L₃ min	d₃ ≈	kN Load Ratings	g Weight
KFX3	4.826	7.920	6.350	26.970	15.880	10.310	7.920	11.100	14.270	10-32	16.500	17
KFX4	6.350	9.530	7.140	33.320	19.050	11.910	9.530	12.700	19.050	¼-28	27.400	27
KFX5	7.938	11.100	8.740	34.930	22.230	12.700	11.100	15.880	19.050	⁵/₁₆-24	33.650	42
KFX6	9.525	12.700	10.310	41.280	25.400	17.450	14.270	18.260	23.800	⅜-24	42.060	69
KFX7	11.113	14.270	11.100	46.020	28.580	19.050	15.880	20.620	26.970	⁷/₁₆-20	45.600	90
KFX8	12.700	15.880	12.700	53.980	33.320	22.230	19.050	23.800	30.150	½-20	67.920	149
KFX10	15.875	19.050	14.270	63.500	38.100	25.400	28.580	28.580	38.100	⅝-18	79.520	216
KFX12	19.050	22.230	17.450	73.030	44.450	28.580	25.400	33.320	44.450	¾-16	124.420	328
KFX14	22.225	22.230	19.430	85.730	50.800	33.020	28.580	34.930	47.630	⅞-14	199.260	467
KFX16	25.400	34.930	25.400	104.780	69.850	41.280	38.100	47.630	53.980	1¼-12	337.400	964

Tips:
If the thread is left-hand (LH), the letter "L" must be appended to the bearing designation, e.g., KFX 10L.
In inch dimension series.

Applications

Industrial Automation: Linkages in packaging machinery, printing presses, and textile equipment.

Construction Machinery: Control linkages for excavators, loaders, and compactors.

Material Handling: Pivot points for conveyors, lifts, and automated guided vehicles.

Off-Highway Vehicles: Steering and throttle linkages for tractors and agricultural implements.

Hydraulic & Pneumatic Cylinders: End mounts for cylinders requiring a secure male thread connection.
