NOS Series Male Rod End Bearing - Self-Lubricating - Metric

This metric spherical rod end features left-hand (LH) or right-hand (RH) external threads for easy installation. A high-performance PTFE composite layer is securely bonded to the outer ring spherical surface, delivering stable self-lubrication for long service life. As a trusted NOS rod end bearings supplier, we provide zinc-plated bearing spherical rod end with excellent corrosion resistance and reliable performance for industrial automation, hydraulic cylinders and heavy machinery applications.

Request your customized solution

Download

NOS Series Male Rod End Bearing Description

The NOS Series (external thread) is a maintenance-free rod end bearing with an extruded body. The rod end body is manufactured using a cold extrusion process, offering higher strength, better precision, and lighter weight compared to traditionally machined rod end bodies. It is equipped with left-hand or right-hand threads and adopts a steel/PTFE composite sliding pair. The rod end body is made of medium carbon steel with environmentally friendly zinc plating, and the ball is made of heat-treated bearing steel with hard chrome plating. The maintenance-free self-lubricating design eliminates the need for grease injection. The extrusion process ensures a compact structure and high rigidity. Specifically designed for light-medium load, high-precision, and low-maintenance linkage scenarios in automated equipment, it is compatible with small to medium metric sizes, serving as a core precision connector for automated equipment.

Core Advantages

1. Extruded rod end body for high strength and rigidity

2. Maintenance-free self-lubrication suitable for automated production lines

3. High precision with flexible and gap-free operation

4. Compact structure suitable for miniaturized equipment

5. High consistency in mass production

Sliding Contact Pair:	Steel/PTFE Composite
Rod End Body Material:	Medium Carbon Steel, Environmental Zinc Plated
Rod end body:	Extrusion-formed
Ball:	Bearing Steel, Heat Treatment, Hardness HRC 58-62, Hard Chromium Plated

Technical Specifications

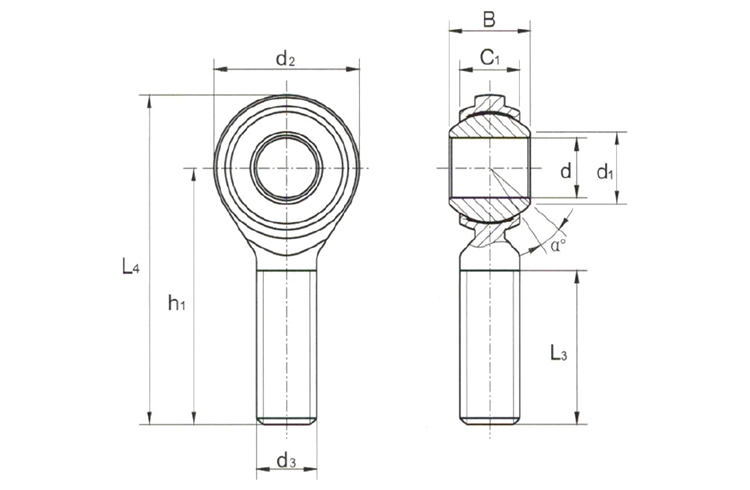

Bearing number	Dimensions									kN Load Ratings		g Weight
Bearing number	d	d₃	B	C₁	d₂	h₁	L₄	L₃ min	α° ≈	Dynamic	Static	g Weight
NOS 3	3	M3×0.5	6	4.9	12	27	33	15	11	1.7	2.00	10
NOS 4	4	M4×0.7	7	5.25	14	30	37	17	12	2.5	2.90	12
NOS 5	5	M5×0.8	8	6	18	33	42.5	20	13	5.70	6.00	13
NOS 6	6	M6×1.0	9	6.7	20	36	46.5	22	13	7.20	7.65	20
NOS 8	8	M8×1.25	12	9	24	42	54.5	25	14	11.6	12.9	38
NOS 10	10	M10×1.5	14	11	28	48	62.5	29	13	14.5	18.0	55
NOS 12	12	M12×1.75	16	12	32	54	70.5	33	13	17.0	24.0	85
NOS 14	14	M14×2.0	19	14	38	60	78.5	36	16	24.0	31.0	140
NOS 16	16	M16×2.0	21	15	40	66	87.5	40	15	28.5	39.0	210
NOS 18	18	M18×1.5	23	17	46	72	95.5	44	15	42.5	47.5	280
NOS 20	20	M20×1.5	25	18	50	78	103.5	47	14	42.5	57.0	380
NOS 22	22	M22×1.5	28	20	54	84	111.5	50	15	57.0	68.0	480
NOS 25	25	M24×2.0	31	22	60	94	124.5	57	15	68.0	85.0	640

Tips:
If the thread is left-hand (LH), the letter "L" must be appended to the bearing designation, e.g., NOS 18 L.
The rod end body is manufactured by the extrusion forming process.

Applications

Industrial Automation: Linkages in packaging machinery, printing presses, and textile equipment.

Construction Machinery: Control linkages for excavators, loaders, and compactors.

Material Handling: Pivot points for conveyors, lifts, and automated guided vehicles.

Off-Highway Vehicles: Steering and throttle linkages for tractors and agricultural implements.

Hydraulic & Pneumatic Cylinders: End mounts for cylinders requiring a secure male thread connection.

Why Choose Us?

When you choose Gonuo, you benefit from our integrated manufacturing and quality system, directly addressing the core concerns of overseas buyers.

Integrated Industry-Trade Manufacturing

As an integrated industry-and-trade manufacturer, we control the entire supply chain — from raw material sourcing to final assembly. This ensures unmatched batch-to-batch consistency, eliminates quality risks, and guarantees stable production for every order.

Technical Precision & Customization

Need specific thread lengths, enhanced corrosion protection, or special materials? Our experienced engineering team provides full technical support for complex designs and offers non-standard customization, focusing on tight tolerances and reliable performance for your critical applications.

Reliable Quality, Proven Consistency

Our end-to-end strict quality control (QC) processes deliver components with up to 30% longer service life under demanding conditions. We provide material certifications and test reports for complete traceability and peace of mind.

Reliable Supply & Better Value

Leveraging our mature supply chain and large-scale production, we offer stable supply, competitive pricing, and flexible MOQs (bulk or small batches). Our fast replenishment system aligns with your production schedule, helping you reduce procurement costs without compromising quality.

Two Decades of Global Trust

For over 20 years, Gonuo has been a trusted brand in precision transmission components, exporting to North America, South America, Russia, and beyond. Based in Ningbo, China, we are committed to consistent quality and long-term partnerships, serving industries worldwide.
