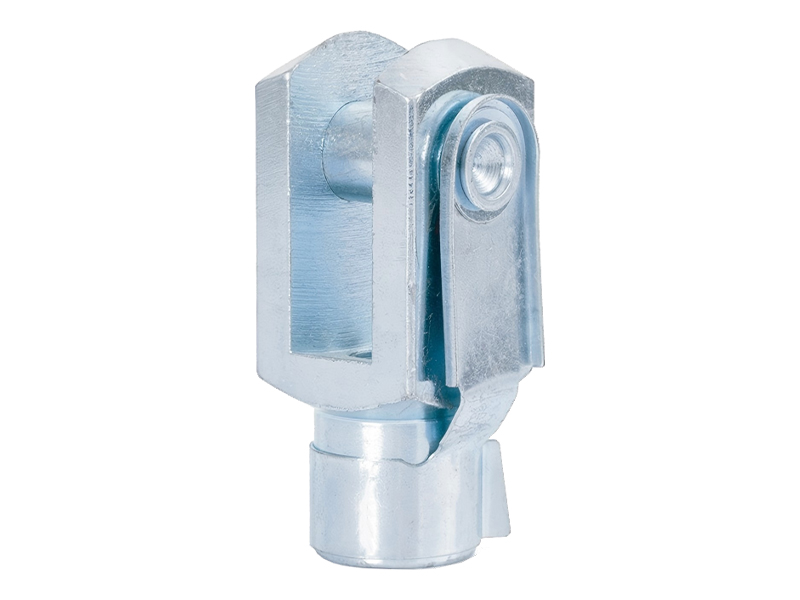

The Heavy Duty U-Type Clevises series is a precision-machined connecting bracket designed for rod end bearings. Made of high-quality carbon steel, these metric clevises provide excellent strength, tight tolerances and stable performance.
Our Heavy Duty U-Type Clevises are fully compatible with most metric rod end bearings and pivot pins, delivering reliable hinged connection for linkage mechanisms. Widely used in automation equipment, construction machinery and hydraulic/pneumatic cylinders, they are ideal heavy duty clevises for industrial transmission systems.
The Heavy duty U clevis is a precision-machined connection component designed for reliable linkage systems with rod end bearings and pivot pins. Manufactured from high-quality carbon steel, the U type clevis provides excellent strength, dimensional accuracy and stable performance under heavy-load conditions.
Designed for compatibility with various metric rod end bearings, this Heavy Duty Clevis ensures secure hinged connections in mechanical transmission systems. It is widely used as a Hydraulic cylinder clevis for hydraulic and pneumatic equipment, as well as a Construction machinery clevis for excavators, loaders and other heavy-duty applications.
As an experienced OEM Heavy Duty Clevis Manufacturer, Gonuo provides customized clevis solutions with precise machining, flexible specifications and reliable quality to meet different industrial requirements.
Core Advantages
1. High-Strength Steel Construction
The Heavy duty U clevis features a robust carbon steel structure, delivering excellent load resistance and durability for demanding applications.
2. Precision Machining for Reliable Assembly
Accurate machining ensures proper dimensional control, smooth installation and stable connection with rod ends and pivot pins.
3. Wide Compatibility with Linkage Systems
The U type clevis is designed to match various metric rod end bearings, providing flexible solutions for different mechanical assemblies.
4. Stable Performance in Heavy Equipment
The Construction machinery clevis offers reliable connection and force transmission for equipment exposed to vibration, impact and heavy loads.
5. Customized OEM Manufacturing Support
As an OEM Heavy Duty Clevis Manufacturer, Gonuo supports customized dimensions, materials and surface treatments for hydraulic, pneumatic and industrial applications.

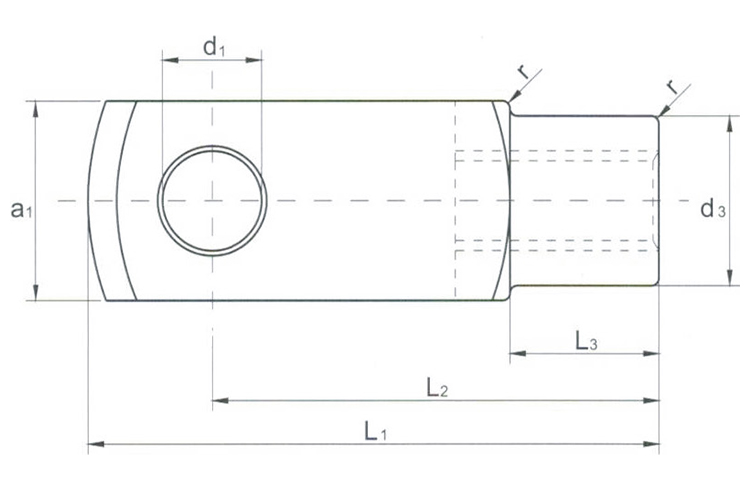

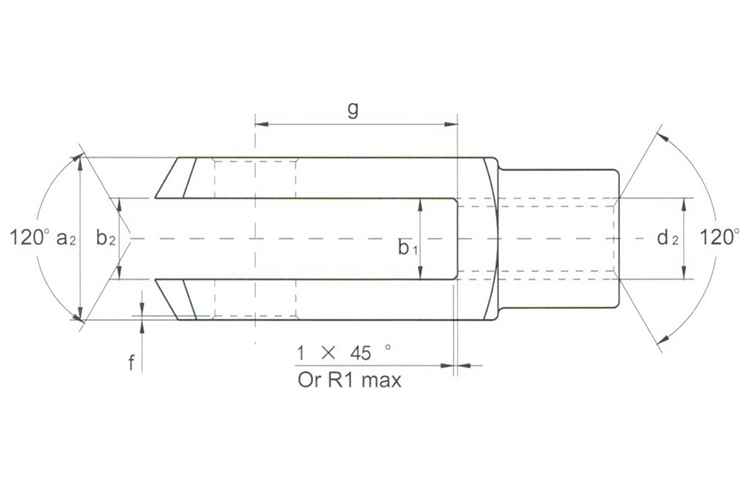

| Number | Dimensions | g Weight | ||||||||||||
| d₁ H9 | g ±0.5 | a₁ h11 | a₂ +0.50 -0.50 | b₁ B13 | b₂ | d₂ | d₃ ±0.3 | f ±0.2 | L₁ ±0.5 | L₂ | L₃ ±0.3 | r ±0.5 | ||
| G 4×8 | 4 | 8 | 8 | 8 | 4 | 4+0.033 -0.015 | M4×0.7 | 8 | 0.5 | 21 | 16±0.3 | 6 | 0.5 | 5 |
| G 4×16 | 4 | 16 | 8 | 8 | 4 | 4+0.033 -0.015 | M4×0.7 | 8 | 0.5 | 29 | 24±0.3 | 6 | 0.5 | 7 |
| G 5×10 | 5 | 10 | 10 | 10 | 5 | 5+0.033 -0.015 | M5×0.8 | 9 | 0.5 | 26 | 20±0.3 | 7.5 | 0.5 | 9 |
| G 5×20 | 5 | 20 | 10 | 10 | 5 | 5+0.033 -0.015 | M5×0.8 | 9 | 0.5 | 36 | 30±0.3 | 7.5 | 0.5 | 13 |
| G 6×12 | 6 | 12 | 12 | 12 | 6 | 6+0.033 -0.015 | M6×1.0 | 10 | 0.5 | 31 | 24±0.3 | 9 | 0.5 | 15 |
| G 6×24 | 6 | 24 | 12 | 12 | 6 | 6+0.033 -0.015 | M6×1.0 | 10 | 0.5 | 43 | 36±0.4 | 9 | 0.5 | 21 |
| G 8×16 | 8 | 16 | 16 | 16 | 8 | 8+0.033 -0.015 | M8×1.25 | 14 | 0.5 | 42 | 32±0.4 | 12 | 0.5 | 37 |
| G 8×16FG | 8 | 16 | 16 | 16 | 8 | 8+0.033 -0.015 | M8×1.0 | 14 | 0.5 | 42 | 32±0.4 | 12 | 0.5 | 37 |
| G 8×32 | 8 | 32 | 16 | 16 | 8 | 8+0.033 -0.015 | M8×1.25 | 14 | 0.5 | 58 | 48±0.4 | 12 | 0.5 | 54 |
| G 8×32FG | 8 | 32 | 16 | 16 | 8 | 8+0.033 -0.015 | M8×1.0 | 14 | 0.5 | 58 | 48±0.4 | 12 | 0.5 | 54 |
| G 10×20 | 10 | 20 | 20 | 20 | 10 | 10+0.033 -0.015 | M10×1.5 | 18 | 0.5 | 52 | 40±0.4 | 15 | 0.5 | 74 |
| G 10×20FG | 10 | 20 | 20 | 20 | 10 | 10+0.033 -0.015 | M10×1.25 | 18 | 0.5 | 52 | 40±0.4 | 15 | 0.5 | 74 |
| G 10×40 | 10 | 40 | 20 | 20 | 10 | 10+0.070 -0.015 | M10×1.5 | 18 | 0.5 | 72 | 60±0.4 | 15 | 0.5 | 116 |
| G 10×40FG | 10 | 40 | 20 | 20 | 10 | 10+0.070 -0.015 | M10×1.25 | 18 | 0.5 | 72 | 60±0.4 | 15 | 0.5 | 116 |
| G 12×24 | 12 | 24 | 24 | 24 | 12 | 12+0.070 -0.015 | M12×1.75 | 20 | 0.5 | 62 | 48±0.4 | 18 | 0.5 | 121 |
| G 12×24FG | 12 | 24 | 24 | 24 | 12 | 12+0.070 -0.015 | M12×1.25 | 20 | 0.5 | 62 | 48±0.4 | 18 | 0.5 | 121 |
| G 12×48 | 12 | 48 | 24 | 24 | 12 | 12+0.070 -0.015 | M12×1.75 | 20 | 0.5 | 86 | 72±0.4 | 18 | 0.5 | 175 |
| G 12×48FG | 12 | 48 | 24 | 24 | 12 | 12+0.070 -0.015 | M12×1.25 | 20 | 0.5 | 86 | 72±0.4 | 18 | 0.5 | 175 |
| G 14×28 | 14 | 28 | 27 | 27 | 14 | 14+0.070 -0.015 | M14×2.0 | 24 | 1.0 | 72 | 56±0.4 | 22.5 | 1.0 | 178 |
| G 14×28FG | 14 | 28 | 27 | 27 | 14 | 14+0.070 -0.015 | M14×1.5 | 24 | 1.0 | 72 | 56±0.4 | 22.5 | 1.0 | 178 |
| G 14×56 | 14 | 56 | 27 | 27 | 14 | 14+0.070 -0.015 | M14×2.0 | 24 | 1.0 | 101 | 85±0.4 | 22.5 | 1.0 | 258 |
| G 14×56FG | 14 | 56 | 27 | 27 | 14 | 14+0.070 -0.015 | M14×1.5 | 24 | 1.0 | 101 | 85±0.4 | 22.5 | 1.0 | 258 |
| G 16×32 | 16 | 32 | 32 | 32 | 16 | 16+0.070 -0.015 | M16×2.0 | 26 | 1.0 | 83 | 64±0.4 | 24 | 1.0 | 282 |
| G 16×32FG | 16 | 32 | 32 | 32 | 16 | 16+0.070 -0.015 | M16×1.5 | 26 | 1.0 | 83 | 64±0.4 | 24 | 1.0 | 282 |
| G 16×64 | 16 | 64 | 32 | 32 | 16 | 16+0.070 -0.015 | M16×2.0 | 26 | 1.0 | 115 | 96±0.4 | 24 | 1.0 | 411 |
| G 16×64FG | 16 | 64 | 32 | 32 | 16 | 16+0.070 -0.015 | M16×1.5 | 26 | 1.0 | 115 | 96±0.4 | 24 | 1.0 | 411 |
Industrial Automation:The U type clevis provides dependable connection solutions for automation systems, mechanical assemblies and industrial linkage mechanisms.
Construction Machinery: The Construction machinery clevis supports linkage systems in excavators, loaders and other heavy equipment exposed to high loads and vibration.
Material Handling: Pivot points for conveyors, lifts, and automated guided vehicles.
Off-Highway Vehicles: Steering and throttle linkages for tractors and agricultural implements.
Hydraulic & Pneumatic Cylinders: The Hydraulic cylinder clevis is widely used for cylinder end connections, providing stable mounting and reliable performance in hydraulic applications.
When you choose Gonuo, you benefit from our integrated manufacturing and quality system, directly addressing the core concerns of overseas buyers.
As an experienced OEM Heavy Duty Clevis Manufacturer, Gonuo controls the complete production process from material selection and machining to final inspection. This ensures consistent quality, stable supply and reliable performance for every Heavy Duty Clevis order.
Different applications require different specifications. Gonuo provides customized Heavy duty U clevis solutions, including dimensions, materials, machining requirements and surface treatments. Our engineering team supports OEM projects for hydraulic systems, construction equipment and industrial applications.
Each U type clevis undergoes strict quality inspection to ensure dimensional accuracy, connection reliability and long service life. Material verification and inspection reports are available to support quality assurance for global buyers.
With mature production capabilities and efficient supply chain management, Gonuo provides stable delivery, competitive pricing and flexible order quantities. We help customers reduce procurement costs while maintaining dependable product quality.
With years of experience in precision transmission components, Gonuo supplies Hydraulic cylinder clevis and Construction machinery clevis solutions to customers worldwide. We focus on long-term partnerships by delivering reliable products, professional support and consistent service.
