CF..T Series Female Rod End Bearing - Self-Lubricating, Inch

CF..T Series Female Rod End Bearing is a high-precision imperial rod end bearing designed for international industrial equipment. As a professional inch rod end bearing, it adopts a standard female thread rod end structure and advanced self-lubricating rod end technology with PTFE composite liner, making it a high-performance PTFE rod end bearing and reliable hydraulic cylinder rod end for various mechanical linkage systems.

Request your customized solution

Download

CF..T Series Female Rod End Bearing Description

The CF..T Series Female Rod End Bearing is a maintenance-free imperial rod end bearing manufactured with cold extrusion technology for higher strength, better precision and compact structure. This standard inch rod end bearing is equipped with left-hand (LH) or right-hand (RH) female thread rod end to meet different assembly needs.

Built with a steel/PTFE composite sliding pair, this self-lubricating rod end eliminates the need for regular greasing and delivers stable, long-term operation. The PTFE rod end bearing structure ensures low friction and smooth movement, while the zinc-plated body provides excellent corrosion resistance.

Strictly produced according to imperial dimension standards, the CF..T Series Female Rod End Bearing offers perfect compatibility with American and European precision equipment. It is widely used as a durable hydraulic cylinder rod end and key component in automation machinery, construction equipment and material handling systems.

Core Advantages

1. Extrusion molding + imperial precision for high-end adaptation

2. Maintenance-free self-lubrication suitable for high-end unmanned production lines

3. Precise imperial dimensions for seamless assembly

4. Compact structure and lightweight

5. High wear resistance and corrosion protection for long service life

CF..T Series Female Rod End Bearing | Self-Lubricating Inch Rod Ends | Gonuo

Sliding Contact Pair:	Steel/PTFE Composite
Rod End Body Material:	Medium Carbon Steel, Environmental Zinc Plated
Rod end body:	Extrusion-formed
Ball:	Bearing Steel, Heat Treatment, Hardness HRC 58-62, Hard Chromium Plated

Technical Specifications

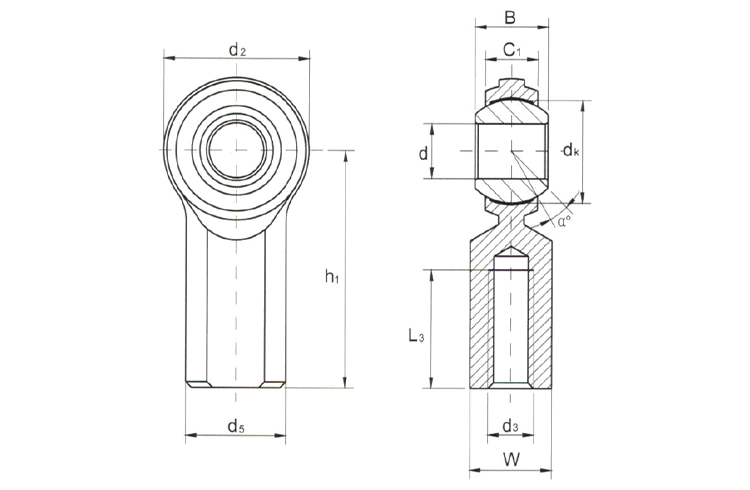

Bearing number	Dimensions											kN Load Ratings	g Weight
Bearing number	d	B	C₁	h₁	d₂	d₅	W	dₖ	L₃ min	d₃ 2B	α° ≈	kN Load Ratings	g Weight
CF5T	7.938	11.10	7.92	34.93	22.23	12.70	11.10	15.06	17.45	⁵/₁₆-24	11	28.693	36
CF6T	9.525	12.70	9.12	41.28	25.40	17.45	14.27	17.45	20.62	⅜-24	11	38.371	59
CF7T	11.113	14.27	10.31	46.02	28.58	19.05	15.88	19.84	23.80	⁷/₁₆-20	10.5	41.676	82
CF8T	12.700	15.88	11.50	53.98	33.32	22.23	19.05	23.80	26.97	½-20	10	67.299	132
CF10T	15.875	19.05	12.29	63.50	38.10	25.40	22.23	26.97	34.93	⅝-18	13	75.271	195
CF12T	19.050	22.23	15.06	73.03	44.45	28.58	25.40	31.75	39.67	¾-16	12	113.642	295

Tips:
If the thread is left-hand (LH), the letter "L" must be appended to the bearing designation, e.g., CFL 10 T.
The rod end body is manufactured by the extrusion forming process.

Applications

Industrial Automation: Linkages in packaging machinery, printing presses, and textile equipment.

Construction Machinery: Control linkages for excavators, loaders, and compactors.

Material Handling: Pivot points for conveyors, lifts, and automated guided vehicles.

Off-Highway Vehicles: Steering and throttle linkages for tractors and agricultural implements.

Hydraulic & Pneumatic Cylinders: End mounts for cylinders requiring a secure male thread connection.
