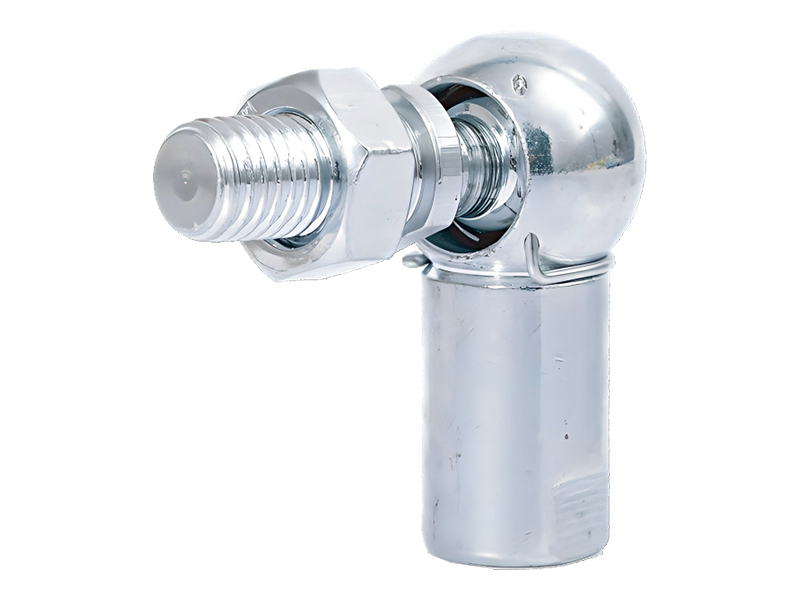

Manufactured strictly to DIN 71802 standards, our angled ball joints deliver precision, durability, and smooth multi-angle oscillation, making them ideal for light-to-medium load applications across industrial automation, construction machinery, and off-highway vehicles.
This series includes industrial-grade clip-locking ball joint rod end bearings engineered strictly to DIN 71802 and din71802 specifications. As a premier china din 71802 hexagonal joint supplier, Gonuo offers these components in A, B, and C configurations: A/B/C series feature no external snaps on the housing, while AS/BS/CS series come with external snaps. The C/CS series is equipped with a flat surface on the ball shank for left-hand thread customization. The ball head and housing fit precisely, allowing flexible multi-angle oscillation. The clip-locking structure ensures secure and anti-loose connection. Optional 304/316 stainless steel material is available for enhanced corrosion resistance. Whether you need a standard angled joint or a china axial joint similar to din 71802, this series offers versatility and easy installation for general machinery and high precision trailer parts meeting din71802 standards.
Core Advantages of Gonuo DIN 71802 Series
1. Multi-Configuration & Hexagonal Options:Flexible choices across A, B, C, AS, BS, CS types, directly from a trusted china din71802 hexagonal joints factory.
2. Secure Clip-Locking Design: Heavy-duty anti-loose connection mechanism designed for demanding industrial and automotive applications.
3. Premium Material & 304/316 Stainless Steel: Superior corrosion protection options tailored for harsh environments.
4. Flexible Multi-Angle Swivel: Seamless multi-angle swinging engineered for complex linkage scenarios and china angle joints din71802requirements.
5. Full Specification Coverage: Standard metric sizes in stock with transparent, competitive precision din 71802 standard price structures.
Ball stud: | Medium carbon steel 45 (Hardened for precision din 71802 mechanical stability) |
Ball socket: | Low carbon steel Q235A / Available as china din 71802 hexagonal joint housing |
Snap ring & safety clip: | Spring steel, Premium Zinc Plating for rust prevention |

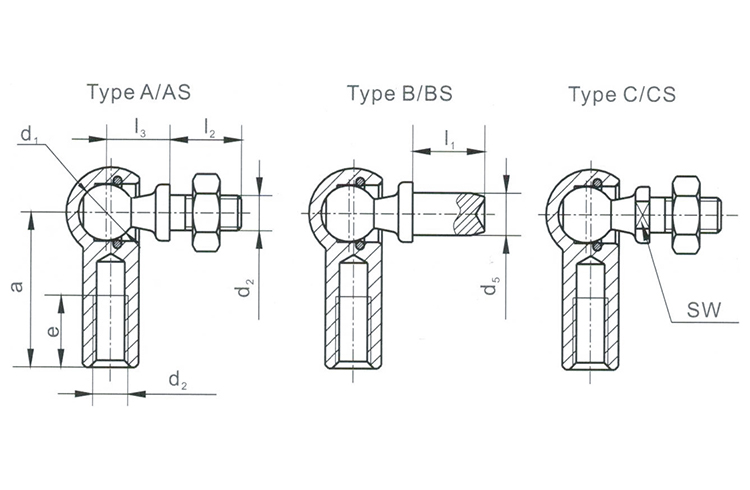

| Dimensions (mm) - DIN 71802 Standard | g Weight | |||||||||
| d₁ h9 | d₂ | l₂ ±0.3 | l₃ ±0.3 | e min. | d₅ h11 | l₁ ±0.2 | a ±0.3 | SW h14 | A and AS C and CS | B and BS |
| 8 | M 5 | 10.2 | 9 | 10.2 | 5 | 4.0 7.5 | 22 | 7 | 1520 | 1285 1335 |
| 10 | M 6 | 12.5 | 11 | 11.5 | 6 | 4.5 8.0 | 25 | 8 | 2520 | 2130 2200 |
| 13 | M 8 | 16.5 | 13 | 14.0 | 8 | 5.0 10 | 30 | 11 | 5310 | 4310 4500 |
| 16 | M 10 M 10 | 20.0 | 16 | 15.5 | 10 | 6.0 13 | 35 | 13 | 1038 | 8230 8660 |
| 19 | M 14 × 1.5 M 14 × 2 M 16 | 28.0 | 20 | 21.5 | 14 | 12 18 | 45 | 16 | 2209 | 1810 1887 |
Sourcing Tips & Options:
1. Type A, B, C without safety clip on the ball socket; Type AS, BS, CS feature a secure safety clip on the ball socket for anti-vibration linkages.
2. Ball stud of Type C and CS features a built-in spanner surface for easy hexagonal mounting.
3. Alternative left-hand thread for the ball socket is fully customizable.
4. Ball socket with or without spanner surface or hexagon surface as required by your engineering prints.
5. Ball stud with or without sealing cap as required for dust protection.
6. Ball stud with or without nut as required for one-stop installation.
7. Full material flexibility: Alternative stainless steel 304, stainless steel 303, or stainless steel 316 available upon request.
Industrial Automation: Heavy-duty linkages in packaging machinery, printing presses, and precision textile equipment.
High Precision Trailer Parts Meeting DIN71802 Standards: Crucial heavy-duty suspension and brake linkage mechanisms for global logistics.
Construction Machinery: Robust control linkages for excavators, loaders, compactors, and china angle joints din71802 projects.
Off-Highway Vehicles: Steering and throttle linkages for agricultural tractors, harvesters, and custom china din71802 hexagonal joints systems.
Hydraulic & Pneumatic Cylinders: Reliable end mounts requiring a secure male thread connection or a custom china axial joint din 71802 supplier solution.
When you choose Gonuo, you benefit from our integrated manufacturing and strict quality system, designed to address the unique needs of global industrial buyers.
As an established industry-and-trade manufacturer, we control the entire supply chain — from raw material sourcing to final assembly. Operating our own china din71802 hexagonal joints factory ensures unmatched batch-to-batch consistency, eliminates quality risks, and guarantees stable production for every OEM order.
Need specific thread lengths, enhanced corrosion protection, or non-standard hexagonal shapes? Our experienced engineering team acts as your reliable china axial joint din 71802 supplier, providing full technical support for complex designs and high-precision tolerances.
Our end-to-end strict quality control (QC) processes deliver linkages with up to 30% longer service life under demanding conditions. We provide comprehensive material certifications and test reports for complete traceability and complete peace of mind.
Leveraging our mature local supply chain and large-scale production in Ningbo, we offer a highly competitive precision din 71802 standard price with flexible MOQs. Our rapid replenishment system aligns perfectly with your production schedule to reduce your total procurement costs.
For over 20 years, Gonuo has been a leading china din71802 hexagonal joints supplier, exporting transmission components to North America, Europe, South America, and beyond. We are fully committed to consistent quality and long-term partnerships, serving top-tier heavy machinery and automotive industries worldwide.
