JFX Series Female Rod End Bearing | Alloy Steel Inch Rod Ends

Maintenance-free

JFX Series Female Rod End Bearing - High Performance Alloy Steel, Inch

Rod body with right or left-hand female thread. Composed of rod end body and self-lubricating radial spherical plain. Surface of rod body zinc plated.

Request your customized solution

Download

JFX Series Female Rod End Bearing Description

The JFX Series is a maintenance-free rod end bearing with internal threads (inch dimensions), specifically designed for high-load structural applications and inch-standard equipment. It consists of a rod end body and a self-lubricating radial spherical plain bearing. The rod end body is made of alloy steel with environmentally friendly zinc plating. It adopts a steel/PTFE composite sliding pair: the outer ring is alloy steel, and the ball is made of heat-treated bearing steel (hardness HRC 58-62) with hard chrome plating. The product strictly complies with inch size standards, featuring high strength and load-bearing capacity, making it suitable for heavy-load, regularly maintainable internal linkage scenarios in heavy machinery and high-load structural applications.

Core Advantages

1. Inch specifications for high-load structural applications

2. Alloy steel construction for superior load-bearing capacity

3. Steel/PTFE composite sliding pair for reliable performance

4. Precise internal thread fit for secure assembly

5. Environmentally friendly zinc plating for long-term corrosion resistance

Sliding Contact Pair:	Steel/PTFE Composite
Rod End Body Material:	Alloy Steel, Environmental Zinc Plated
Outer Ring Material:	Alloy Steel
Ball:	Bearing Steel, Heat Treatment, Hardness HRC 58-62, Hard Chromium Plated

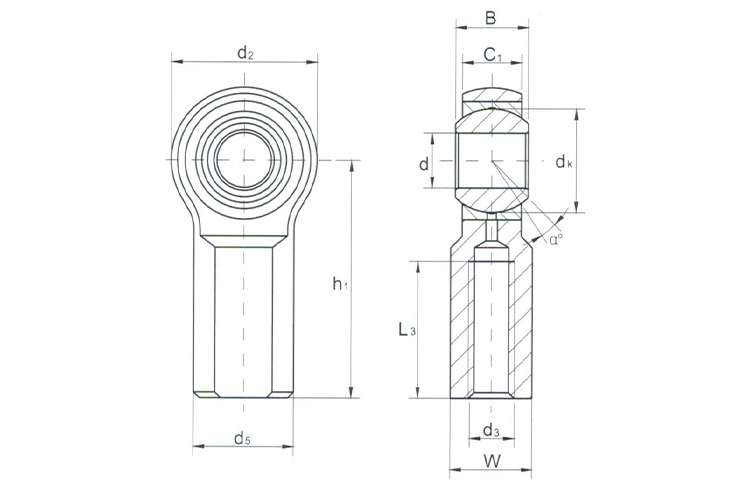

Technical Specifications

Bearing number	Dimensions											kN Load Ratings	g Weight
Bearing number	d	B	C₁	h₁	d₂	d₅	W	dₖ	L₃ min	d₃ 2B	α° ≈	kN Load Ratings	g Weight
JFX3	4.826	7.92	6.35	26.97	15.88	10.31	7.92	11.10	14.27	10-32	6.5	6.805	17
JFX4	6.350	9.53	7.14	33.32	19.05	11.91	9.53	12.70	19.05	¼-28	8	11.297	27
JFX5	7.938	11.10	8.74	34.93	22.23	12.70	11.10	15.88	19.05	⁵/₁₆-24	7	13.934	42
JFX6	9.525	12.70	10.31	41.28	25.40	17.45	14.27	18.26	23.80	⅜-24	6	17.416	69
JFX7	11.113	14.27	11.10	46.02	28.58	19.05	15.88	20.62	26.97	⁷/₁₆-20	7	18.759	90
JFX8	12.70	15.88	12.70	53.98	33.32	22.23	19.05	23.80	30.15	½-20	6	29.624	149
JFX10	15.875	19.05	14.27	63.50	38.10	25.40	22.23	28.58	38.10	⅝-18	8	32.752	216
JFX12	19.05	22.23	17.45	73.03	44.45	28.58	25.40	33.32	44.45	¾-16	7	51.237	328
JFX14	22.225	22.23	19.43	85.73	50.80	33.02	28.58	34.93	47.63	⅞-14	3.5	82.185	467
JFX16	25.40	34.93	25.40	104.78	69.85	41.28	38.10	47.63	53.98	1¼-12	8.5	193.670	964

Tips:
For left-hand thread, please add suffix "L", e.g. JFX 10L.
In inch dimension series,suitable for high-load structural applications

Applications

Industrial Automation: Linkages in packaging machinery, printing presses, and textile equipment.

Construction Machinery: Control linkages for excavators, loaders, and compactors.

Material Handling: Pivot points for conveyors, lifts, and automated guided vehicles.

Off-Highway Vehicles: Steering and throttle linkages for tractors and agricultural implements.

Hydraulic & Pneumatic Cylinders: End mounts for cylinders requiring a secure male thread connection.
