JMX inch rod end bearing features a durable rod body with right-hand or left-hand male threads, combined with a self-lubricating radial spherical plain bearing for smooth movement and reliable performance. The JMX series male spherical rod end bearing adopts a zinc-plated surface treatment to improve corrosion resistance and service durability. As a professional JMX rod end bearing manufacturer, Gonuo provides high-quality solutions for heavy-duty linkage systems, industrial machinery and precision motion applications.
JMX inch rod end bearing is a high-performance male rod end bearing designed for heavy-load structural applications and inch-standard equipment. It features external threads for direct and secure fastening, combined with a self-lubricating radial spherical plain bearing to provide smooth movement and long service life.
The JMX series male spherical rod end bearing is manufactured with a high-strength alloy steel body and zinc-plated surface treatment for improved corrosion resistance. Its steel/PTFE composite sliding structure ensures excellent wear resistance, low friction and reliable load performance under demanding conditions.
As a high strength rod end bearing, the JMX series offers precise inch dimensions, strong load-bearing capability and stable performance for heavy machinery, industrial linkages and other high-load applications. Gonuo, as a professional JMX rod end bearing manufacturer, provides reliable alloy steel rod end bearing solutions with consistent quality and customization support.
Core Advantages
1. Inch specifications for high-load structural applications
2. Direct external thread fastening for efficient installation
3. Alloy steel rod end body for extreme load resistance
4. Steel/PTFE composite for low friction and long service life
5. Environmentally friendly zinc plating for enhanced corrosion protection
Sliding Contact Pair: | Steel/PTFE Composite |
Rod End Body Material: | Allot Steel, Environmental Zinc Plated |
Outer Ring Material: | Carbon Steel |
Ball: | Bearing Steel, Heat Treatment, Hardness HRC 58-62, Hard Chromium Plated |

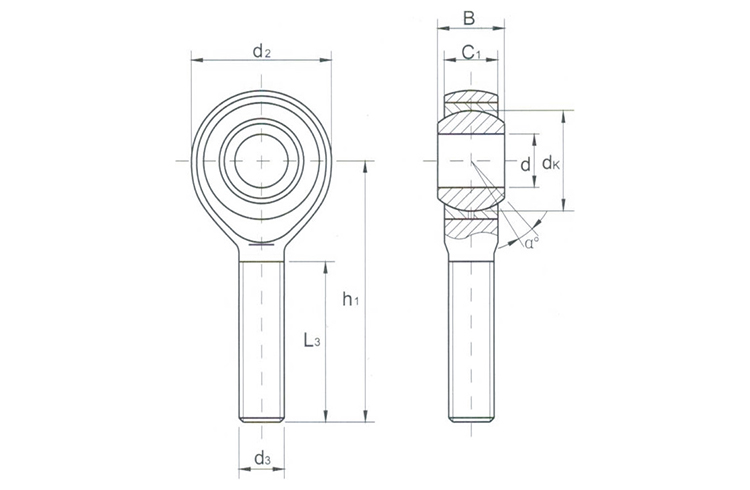

| Bearing number | Dimensions | kN Load Ratings | g Weight | ||||||||
| d | B | C₁ | h₁ | d₂ | dₖ | L₃ min | d₃ 3A | α° ≈ | |||
| JMX3 | 4.826 | 7.92 | 6.35 | 31.75 | 15.88 | 11.10 | 19.05 | 10-32 | 6.5 | 5.197 | 13 |
| JMX4 | 6.350 | 9.53 | 7.14 | 39.67 | 19.05 | 12.70 | 25.40 | ¼-28 | 8 | 9.600 | 20 |
| JMX5 | 7.938 | 11.10 | 8.74 | 47.63 | 22.23 | 15.88 | 31.75 | ⁵/₁₆-24 | 7 | 12.385 | 33 |
| JMX6 | 9.525 | 12.70 | 10.31 | 49.23 | 25.40 | 18.26 | 31.75 | ⅜-24 | 6 | 17.416 | 51 |
| JMX7 | 11.113 | 14.27 | 11.10 | 53.98 | 28.58 | 20.62 | 34.93 | ⁷/₁₆-20 | 7 | 18.759 | 73 |
| JMX8 | 12.70 | 15.88 | 12.70 | 61.93 | 33.32 | 23.80 | 38.10 | ½-20 | 6 | 29.624 | 113 |
| JMX10 | 15.875 | 19.05 | 14.27 | 66.68 | 38.10 | 28.58 | 41.28 | ⅝-18 | 8 | 32.752 | 173 |
| JMX12 | 19.05 | 22.23 | 17.45 | 73.03 | 44.45 | 33.32 | 44.45 | ¾-16 | 7 | 51.237 | 273 |
| JMX14 | 22.225 | 22.23 | 19.43 | 85.73 | 50.80 | 34.93 | 50.80 | ⅞-14 | 3.5 | 82.185 | 411 |
| JMX16 | 25.40 | 34.93 | 25.40 | 104.78 | 69.85 | 47.63 | 53.98 | 1¼-12 | 8.5 | 193.670 | 1091 |
Tips:
For left-hand thread, please add suffix "L", e.g. JMX 10L.
In inch dimension series,suitable for high-load structural applications
Industrial Automation: The JMX series male spherical rod end bearing supports precision linkages in packaging machinery, printing equipment and automated production systems.
Construction Machinery: The Male rod end bearing is widely used in excavators, loaders and heavy equipment linkage systems, providing stable connection and high load performance.
Material Handling: Pivot points for conveyors, lifts, and automated guided vehicles.
Off-Highway Vehicles:The durable High strength rod end bearing is ideal for tractors, agricultural machinery and off-road vehicles exposed to vibration and impact.
Hydraulic & Pneumatic Cylinders: The JMX inch rod end bearing is suitable for cylinder end mounting applications requiring strong fastening and reliable movement.
When you choose Gonuo, you benefit from our integrated manufacturing and quality system, directly addressing the core concerns of overseas buyers.
Gonuo specializes in producing Alloy steel rod end bearing solutions with strict material control and precision manufacturing to ensure strength, durability and consistent performance.
NAs a professional JMX rod end bearing manufacturer, we provide customized solutions for thread size, dimensions, surface treatment and special application requirements.
Our end-to-end strict quality control (QC) processes deliver components with up to 30% longer service life under demanding conditions. We provide material certifications and test reports for complete traceability and peace of mind.
Leveraging our mature supply chain and large-scale production, we offer stable supply, competitive pricing, and flexible MOQs (bulk or small batches). Our fast replenishment system aligns with your production schedule, helping you reduce procurement costs without compromising quality.
For over 20 years, Gonuo has been a trusted brand in precision transmission components, exporting to North America, South America, Russia, and beyond. Based in Ningbo, China, we are committed to consistent quality and long-term partnerships, serving industries worldwide.
