POS Series Male Rod End Bearing - Metric, Oil-Lubricated

This POS Rod End Bearing is a Male Rod End Bearing with left-hand (LH) or right-hand (RH) external threads. The outer race is lined with a bronze liner. The rod end body is zinc-plated and equipped with a lubrication hole or grease nipple for regular oil lubrication.

Request your customized solution

Download

POS Rod End Bearing Description

The POS Series is a maintenance-required rod end bearing with external threads and a bronze bushing. It is equipped with left-hand or right-hand external threads. The rod end body is made of medium carbon steel with environmentally friendly zinc plating, and the outer ring is inlaid with a bronze bushing. It adopts a steel/bronze sliding pair; the ball is made of heat-treated bearing steel (hardness HRC 58-62) with hard chrome plating. The entire series is equipped with lubrication holes/grease nipples. The self-lubrication and dry friction resistance of the bronze bushing make it suitable for medium-high load, low-speed, and regularly maintainable external linkage scenarios in equipment. The external threads allow direct and secure fastening with internal threaded holes on equipment frames and connectors. With its compact structure, moderate cost, and easy assembly, it is a cost-effective solution for external linkages in general machinery and light industrial equipment.

Core Advantages

1. Bronze bushing for self-lubrication and dry friction failure prevention

2. Direct external thread fastening without additional adapters

3. Cost-effective for small and medium-sized equipment

4. Multiple protections for outdoor environments

Sliding Contact Pair:	Steel/Bronze
Rod End Body Material:	Medium Carbon Steel, Environmental Zinc Plated
Outer Ring Material:	Outer race lined with bronze liner
Ball:	Bearing Steel, Heat Treatment, Hardness HRC 58-62, Hard Chromium Plated

Technical Specifications

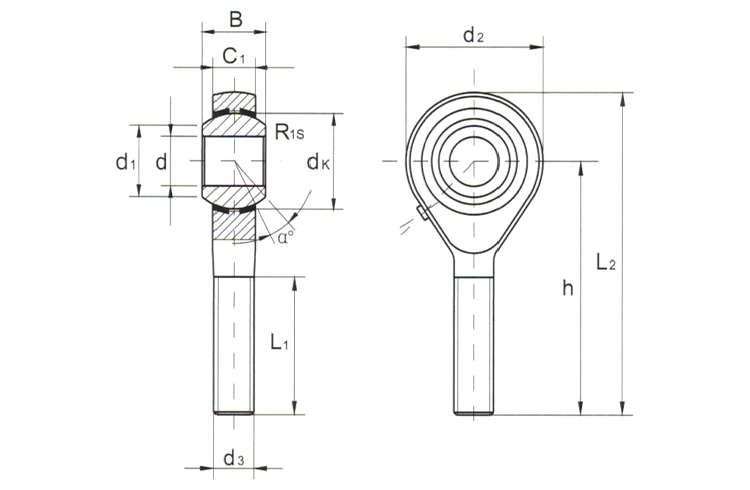

Bearing number	Dimensions												kN Load Ratings		g Weight
Bearing number	d	d₃	B	C₁	L₁	d₂	h	L₂	dₖ	R₁s	d₁	α° ≈	Dynamic	Static	g Weight
POS 5	5	M5×0.8	8	6	20	16	33	41	11.11	0.3	7.70	13	3.25	5.70	12
POS 6	6	M6×1.0	9	6.75	22	18	36	45	12.70	0.3	8.96	13	4.30	7.20	16.9
POS 8	8	M8×1.25	12	9	25	22	42	53	15.875	0.3	10.4	14	7.20	11.6	33.4
POS 10	10	M10×1.5	14	10.5	29	26	48	61	19.05	0.3	12.9	13	10.0	14.5	54.7
POS 12	12	M12×1.75	16	12	33	30	54	69	22.225	0.3	15.4	13	13.4	17.0	84.3
POS 14	14	M14×2.0	19	13.5	36	34	60	77	25.40	0.3	16.9	16	17.0	24.0	126.6
POS 16	16	M16×2.0	21	15	40	38	66	85	28.575	0.3	19.4	15	21.6	28.5	175.5
POS 18	18	M18×1.5	23	16.5	44	42	72	94	31.75	0.3	21.9	15	26.0	42.5	243
POS 20	20	M20×1.5	25	18	47	46	78	101	34.925	0.3	24.4	15	31.5	52.5	317
POS 22	22	M22×1.5	28	20	51	50	84	111	38.10	0.3	25.8	15	38.0	57.0	410
POS 25	25	M24×2.0	31	22	57	60	94	124	42.85	0.3	29.6	15	47.5	68.0	616.5
POS 28	28	M27×2.0	35	24	62	66	103	136	47.60	0.3	32.3	15	58.0	75.5	836.5
POS 30	30	M30×2.0	37	25	66	70	110	145	50.80	0.3	34.8	17	64.0	88.0	1020

Tips:
If the thread is left-hand (LH), the letter "L" must be appended to the bearing designation, e.g., POSL 8.
For bearings made of stainless steel, add the prefix “S” to the model designation, e.g., SPOS 8.

Applications

The POS Rod End Bearing is widely used across various industries:

Industrial Automation: Linkages in packaging machinery, printing presses, and textile equipment.

Construction Machinery: Control linkages for excavators, loaders, and compactors.

Material Handling: Pivot points for conveyors, lifts, and automated guided vehicles.

Off-Highway Vehicles: Steering and throttle linkages for tractors and agricultural implements.

Hydraulic & Pneumatic Cylinders: End mounts for cylinders requiring a secure male thread connection.
